2013 Azimut 54

The motor yacht Azimut 54 was produced by Azimut Yachts, with production starting in 2013. The Azimut 54 is a 16.70 meter planing yacht featuring a flybridge, 4 guest cabins, and a draft of 1.35 meters. It can reach speeds of up to 33 knots. Originally sold for one million euros, it is no longer in production, and the price of used models varies. Please contact us for more information on used yachts and pricing!

Details

• Cockpit cover
• Hard-top
• Cockpit chair 4 pcs.
• Teak-laid flybridge
  Teak-laid sides
• Cradle for tender (not installed)
• Raymarine DSM 300 Gold package videocameras set

Propulsion system summary

• Reduction gears/marine gears
• Manufacturer: ZF
• Model: 325 IV
• Reduction ratio: 1:2,037

Transmission

• Configuration: Flanged Vdrive
• Shaft length: 3,670 mm
• Shaft angle: 9.8°
• Shaft diameter: 65 mm
• Distance between centers: 1,500 mm
• Shaft building material: OTMAN (GrCu1)
• Shaft support: OTMAN (GrCu1)
• Hull casing with PSS seal
• Propellers
• Manufacturer: Italian Propellers
• Number of blades: 4
• Diameter / pitch: 740 mm
• Material: Satin brass alloy
• Steering gear
• Rudders: Rudder with round profile (material: NAB alloy)
• Bow thruster (STD)
• Bow thruster: 6.5 Kw Side Power D.250 24V

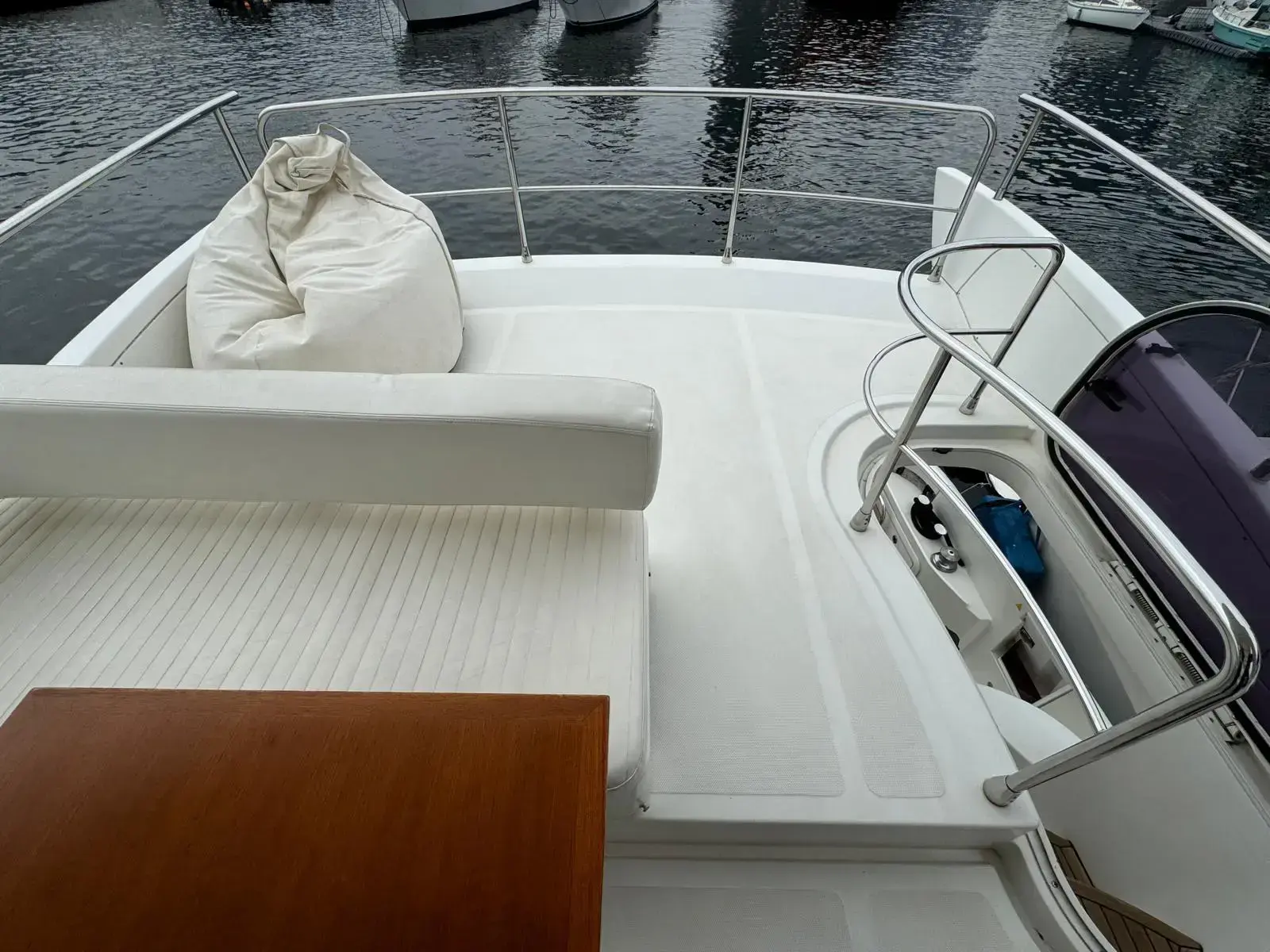

Flybridge

• The large flybridge can only be accessed from the outside (ladder from cockpit, portside)
• GRP cockpit stairs with 6 steps
• External step flooring: teak
• Non-slip floor Access door: watertight in aluminium and Plexiglas
  Smoked Plexiglas windbreak with stainless steel and aluminum frame Roll bar in GRP and inserts in non-transparent mirrored glass
• Handrail: NMMA compliant stainless steel (tube 30 X 1.5) (stern fly handrail, fly access protection handrail, Fly railing, mobile fly handrail)

Bow sundeck

• Steering gear:
  - bench with manual seat tip-up mechanism to raise the height - adjustable steering wheel (4-spoked steering wheel, painted white)
• "L"-shaped sofa joining with the sundeck Teak table with central stainless steel leg
• 1 bow locker (in front of instrument board) Garbage bin in fly cabinet
  Washbasin (cold water) Manual spotlight
• Stainless steel light mast Self-inflating life raft: flybridge - astern, on port side
• 2 loudspeakers connected to the saloon radio

The wheelhouse includes:

• Main engine instruments (thermometer, rev counter)
  - Alarm indicator lights - Engine start-up controls
  - Bow anchor winch controls - Horn control
  - Trim tab control - Bow thruster control
  - Adjustable spot activation - 12V socket
  - Chain meter counter

Bow / Side walkways

• Bow
• Anchor chain and fender locker with water drainage DELTA 25kg galvanized steel anchor
• 75-meter high-resistance gaged chain, diameter 10mm Bow roller
• WINCH 1700W 24V 2 stainless steel bitts L. 300mm, oval tube
• Sundeck area with non-skid finish Chain wash pump
  Walkways
• Filling with diesel: 2 "Diesel" refill caps diam. 88mm with cover Grid seat width = 250mm
• Filling with fresh water: 1 "Water" refill cap, diam. 85 mm Black water outlet: 1 "Waste" outlet water cap, diam. 75mm, without cover
• 2 stainless steel bitts L. 300mm oval tube (intermediate) Non-slip floor
• Flybridge side handrail Fender holder: in stainless steel and high resistance PVC. Almond-shaped section 39.8 X 7.8mm
• Pulpit

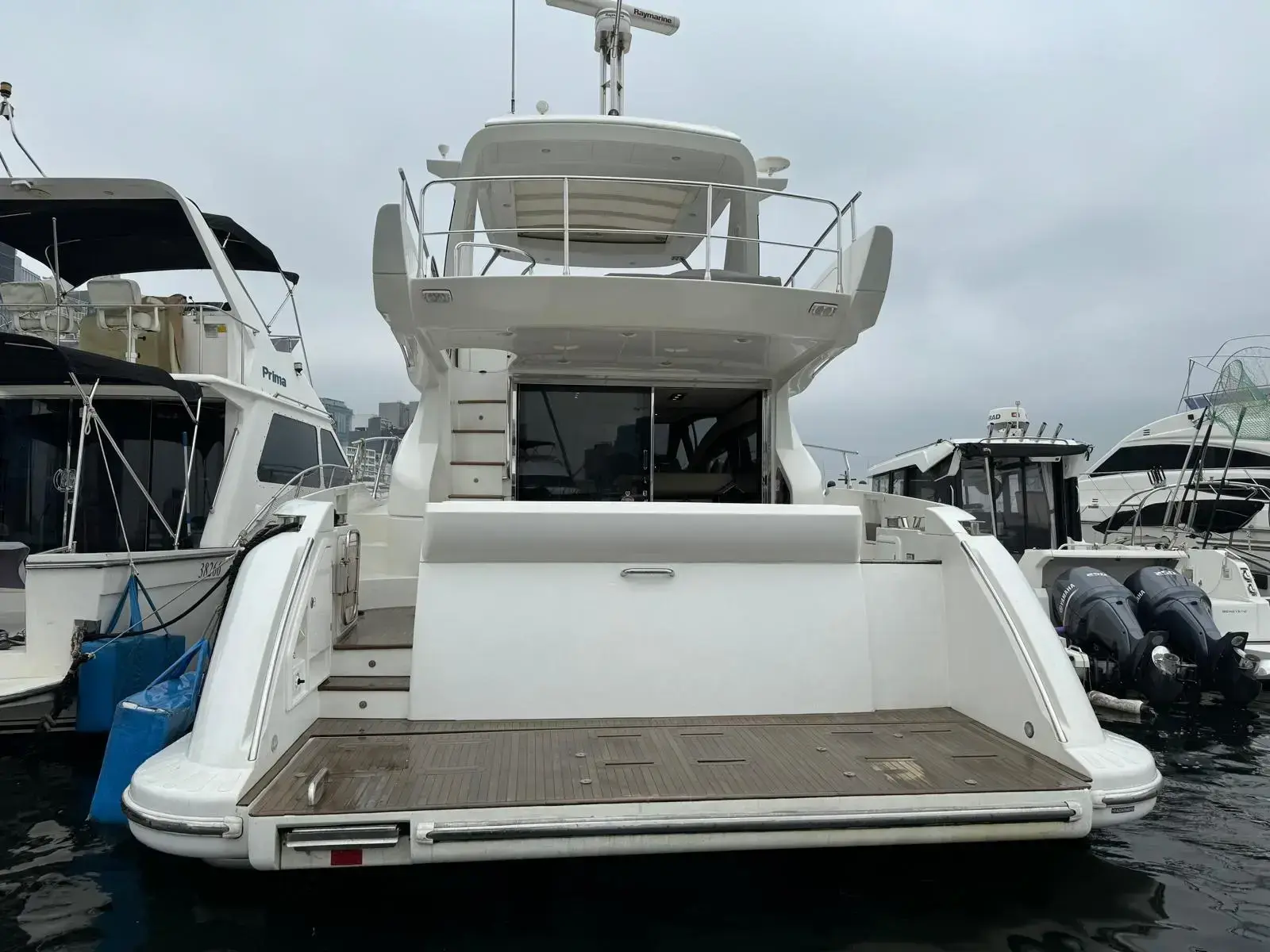

Cockpit and platform

• Cockpit access via stainless steel and Plexiglas gate.
• 2 stainless steel T-head bitts - H. 110mm, L. 350mm
• Warping station: maximum dimensions 1230x210 Aft stainless steel left/right chock.
• Vertical double door in stainless steel and tempered glass.
• 4-seater C-shaped cockpit bench in GRP, integrated in the deck - 2.47m wide.
• Cockpit bench cushions. 1 locker in the port deckhouse column.
• Engine room access via door in cockpit floor.
• Crew cabin access via hatch in cockpit bench (starboard side).
• Teak floor (excluding side walkway access steps).
• Curved handrail on stern platform.
• Handrail on flybridge access stairs.
• Handles on the cockpit bench armrests.
• Lighting: spotlights in cockpit ceiling panel.
• Shower head with hot and cold water.
• Platform
• Stern platform lights Teak floor
• Stainless steel telescopic swimming ladder (4 steps)
• Platform measurements:
  - width 3.5m - length 1.15m (platform only)
  - total length 1.37m - stern overhang: approx. 1330mm
• INSTALLABLE TENDER: - WORKING DIMENSIONS OF PLATFORM: 3.5 x 1.15m
  - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 380Kg - HYPOTHETICAL PLATFORM TENDER: 3.2 x 1.5 m.
  - RECOMMENDED WILLIAMS TENDER: Turbojet 285 - MAX. WILLIAMS TENDER: Turbojet 325
• Wheelhouse
• Electric helm seat with 2 places (reversible seat for use with dinette too) -
• adjustable seat and sprung backrest
• Electric window
• Adjustable steering wheel
• The wheelhouse includes:
• - Bow thruster control
  - Electronic remote controls - Trim tab switches
  - Trim tab indicators - Bow anchor winch activation
  - Horn, navigation light, wiper switches - Activation of bilge pumps
  - Side window opening - Emptying of black and gray water tanks
  - Engine room ventilation - Cigarette lighter socket
  - Shore power socket indicator light - Chain wash pump switch
  - Level gauge for diesel tank, black water, gray water and fresh water - engine start-up
  - rev counter - hour counter
  - engine pressure gauges and thermometers - ammeters
  - alarm indicator lights

Saloon and Dinette / Galley

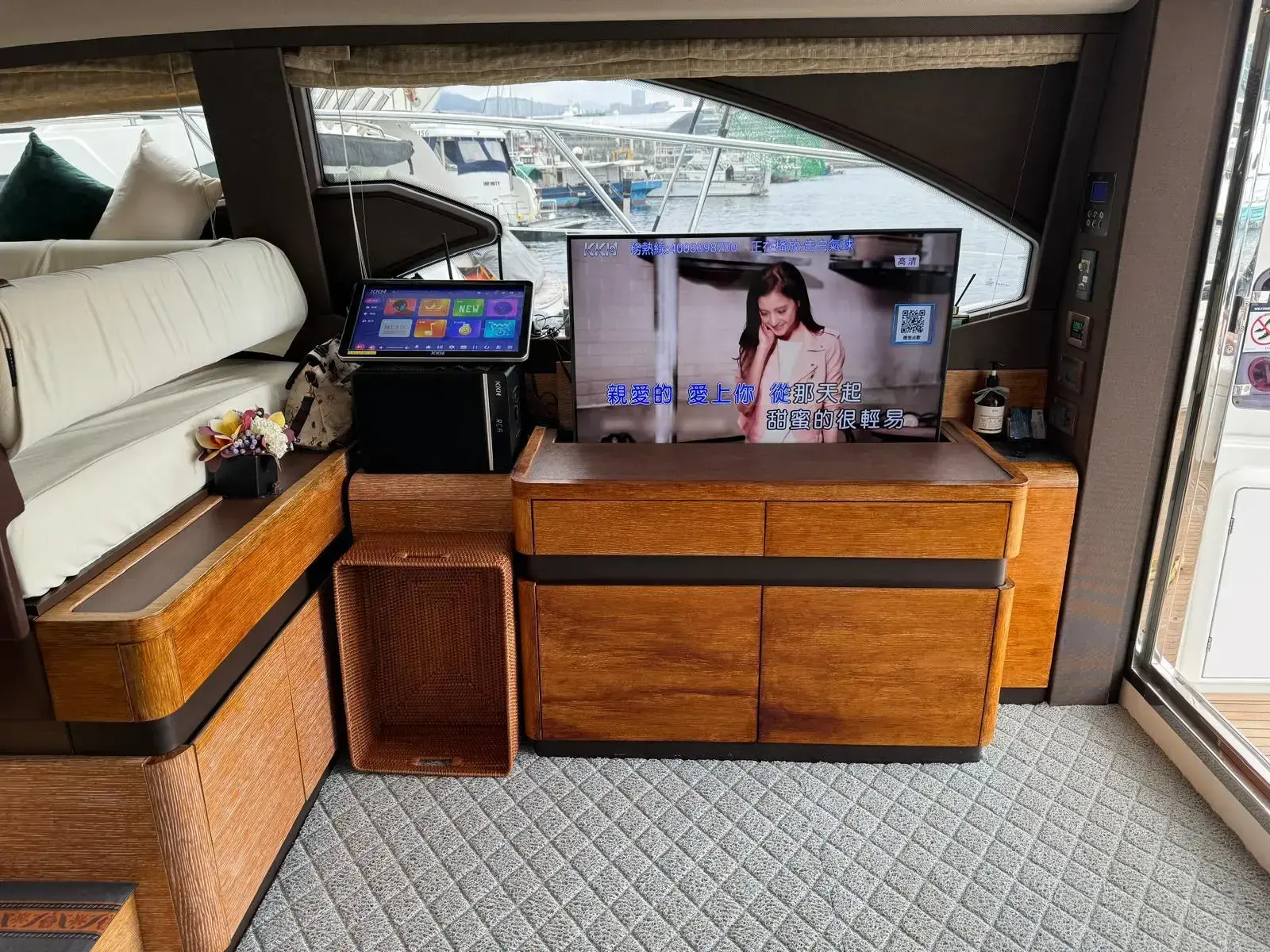

Saloon and Dinette

• Cupboards in whitened oak
• Bargeboards and window frames in mat fiberglass
• Flush-mounting lamp in the column dividing the saloon from the galley
• Cupboard on starboard side
• 1 "C"-shaped sofa for 4 people on the port side of the saloon - standard smooth fabric covering
• 1 "C"-shaped sofa for 4 people on the starboard side of the dinette - standard smooth fabric covering
• Rectangular table (1390x780mm) in dinette for 6 people. The central part of the top can be removed and stored in the compartment below the aft sofa cushions
• TV system with aerial, sockets in saloon and owner's cabin
• Below deck accommodation ladder with carpeted steps
• Ceiling and wall upholstery: 2-tone fabric Roman blinds for stern windows and sliding blind for saloon door
• Carpeted floor
• Galley
• Floor in oak with tobacco-colored, staved finish Silestone
• Blanco City worktop and splashback
• Glass ceramic range with 3 aligned plates and pan holder
• Hood installed in the wall unit above the range, with active carbon filters (recirculation)
• Microwave oven + grill (17-liter capacity) Sink (450 x 400mm)
• Fridge + upright freezer WAECO 220 l Electric window
• Corridor
• Below deck access corridor with carpeted floor
• Spotlight lighting
• Beige bulwark upholstery
• Corridor grabrails
  Owner’s cabin
• Located in the middle of the boat
• Diagonal double bed with headboard on starboard side.
• Manual tip-up mechanism with storage space below (578 l)
• Oak headboard that can be opened to access the cabinet
• Vanity table with sofas on the left side
• 2 wall units Drawer unit with 1 drawer
• 2 wardrobes with hanger bars 1 wardrobe with shelves
• Shelf around the bed
• Spotlights and lighting strips on ceiling
• 2 openable portholes (rectangular porthole inserted in the window) 3 + 3 rectangular hull windows
• Hatchway: emergency exit from ceiling panel above the bed
• Direct access to the head from the corridor leading to the owner's cabin with internal stairs
• Mirror on the vanity table
• Mirror in the stern wardrobe
• Wooden Venetian blinds on the windows
• Fabric wall upholstery and oak wood paneling
• Fabric ceiling panels
• TV system in owner's cabin
  Owner's head
• Located prior to the owner's cabin on the port side (under the galley).
• Access from owner's cabin (via ladder)
• Oak top and oval washbasin cognac (brown)
• Vetro Freddo
• TECMA toilet
• Chromed mixer tap
• Separate shower enclosure; flat shower door
• Shower column and seat in mat
• ABS Wall unit with 2 sliding panels above washbasin
• Ivory-colored ceiling panels
• Lighting: ceiling light on wall unit, and spotlights in the shower
• 1 openable porthole with wooden
• Venetian blind Floor in oak, with grating in solid wood
• Head extractor: forced intake (from the shower ceiling panel)
• Air conditioning delivery from owner's cabin
• Head accessories: - 1 toilet brush holder
  - 2 clothes hooks - 1 glass-holder
  - 1 toilet roll holder - 1 towel rail
  - 1 Plexiglas soap dish in shower
  VIP cabin
• Located in the bow Fixed double bed
• Fixed oak headboard
• 2 wall units above the windows
• 1 wardrobe with hanger bar and shelves on the starboard stern wall
• 1 wardrobe with hanger bar on the port stern wall Shelves on bulwark (bed side)
• 2 under-bed lockers 2 wall lights on headboard
• Spotlights on ceiling Direct access to guest head
• Carpeted floor Windows
• Hatchway Wooden
• Venetian blind
• Fabric bulwark upholstery
• Ceiling panels: oak portal, mat ivory
• GRP ceiling panel with fabric panels above the bed
  VIP / Guest head
• Positioned abaft of the VIP cabin on the port side
• Direct access from the VIP cabin or from the corridor
• TECMA toilet
• Oak top and oval washbasin cognac (brown)
• Vetro Freddo
• Chromed mixer tap 3-door round shower, not separated
• Shower column in mat
• ABS Wall unit with 2 sliding panels above washbasin
• Lighting: ceiling light on wall unit, and spotlights in the shower
• 1 openable round porthole with wooden
• Venetian blind
• Floor in oak, with grating in solid wood
• Natural air extraction
• Air conditioning delivery from VIP cabin
• Head accessories: - 1 toilet brush holder
  - 2 clothes hooks - 1 glass-holder
  - 1 toilet roll holder - 1 towel rail
• Guest cabin
• Located on starboard side
• Single beds, fixed
• Headboard with oak panels 1 central nightstand between the beds (with openable compartment)
• 1 wardrobe with hanger bar and shelves
• 3 under-bed lockers
• Ceiling panels: oak portal and ivory
• GRP ceiling panel with fabric panels
• Fabric wall upholstery (with oak and fabric paneling)
• 1 openable round porthole Wooden Venetian blind
• Flooring: carpet Lighting: spotlights
• 2 wall lights on headboard
  Crew cabin (OPT)
• Access from cockpit bench Location: aft
• Single bed with under-bed compartments
• 1 wall unit
• 1 wardrobe 1 head cabinet
• Bulwark upholstery: fabric / imitation leather in shower area
• Ceiling panel: GRP + upholstered panels
• Bulwark shelves: 1 at the foot of the bed, 1 above the rudder hold
• Oval porthole 190x450 above the cockpit bench
• Flooring: GRP with non-slip finish + carpet; teak grating in the head area
• 1 adjustable wall light on the headboard Halogen spotlights
• Fabric blind
• En suite head
• TECMA toilet
• White resin washbasin
• Chrome mixer with extractable shower head
• Waterproof shower curtain
• Washbasin mirror
• Shelf under the washbasin
• Lighting: included in crew cabin
• Head accessories: - 1 toilet brush holder
  - 1 clothes hook - 1 soap dish
  - 1 glass-holder - 1 toilet roll holder
  - 1 towel rail


Electric system
Main characteristics

• Shore-powered power supply Onboard voltages:
  - 230V-50Hz AC - 24V DC
  - 12V DC
• The main panels are installed in the wheelhouse, above the galley fridge, in the engine room, and in the crew cabin
• The power circuit breakers protecting all the 24V utilities are in the wheelhouse In the galley (above the fridge) there are other power circuit breakers that protect the various 230V AC utilities, as well as the 230V shore or generator source selectors; the 230V power circuit breakers for the air conditioning system are also located here
• On the main panels in the engine room and crew cabin you will also find additional power circuit breakers for the various 24V DC utilities
• Generator
• A 3.5 kW 50 Hz generator is provided
• Shore power sockets
• 1 socket, 50A, astern
  - 1 Plexiglas soap dish in shower
• Engine gas exhaust system
• Gas exhaust system: immersed by-pass
• Insulated stainless steel raisers
• Exhaust pipes: structural muffler in GRP Water/fumes separator for generator, with side exhaust
  Engine room (other)
• Access from door in cockpit floor
• Battery housing: 1 set on stern bulkhead, on frame above water heater; 1 set in crew cabin, behind headboard wall
• Sound-proofing
• Engine room ventilation
• Rooms: - Ventilation of owner's head: forced intake 24V
  - Ventilation of VIP / Guest head: natural - Forced extraction: with 2 fans 24V, D. 250mm
• Engine room: - air intake points on hull (separator liters)
  - natural / forced intake: with 2 fans 24V, D. 250mm - Forced extraction: with 2 fans 24V, D. 250mm
