2022 Princess Y72

Boat Overview

Finished to high standards throughout, the 2022 Y72 Princess design features are comparable to those of larger Y Princess Class Yachts. Her spacious saloon has a sociable layout with a bar area and open plan galley, complemented by a multi-zone Naim audio system.

Forward on the lower deck of Y72, six guests can enjoy three beautifully appointed guest cabins filled with light from the full-length hull glazing. A dedicated staircase leads from the main deck to the full-beam owner's stateroom amidships, via a private lobby area connected to the saloon.

The sophisticated owner's stateroom is furnished with a sofa, dressing area and vanity desk wrapped and stitched in Livorno Stone leather for a contemporary finish. Luxurious surroundings exude from the owner's stateroom with architecturally inspired feature panels, fresh linen wall coverings and a bronze tint mirror to compliment the scheme. An additional en-suite cabin with two single beds is positioned aft for crew.

Details

Princess Y72 July 2022
2 x MAN Vx 1650hp

PRINCIPAL DIMENSIONS:
Length overall (Incl. pulpit) 22.80 m
Length overall (excl. pulpit) 22.31 m
Beam 5.45 m
Draft 1.71 m
Displacement approx. 65,000 kg
Fuel capacity 4500 l + extra tank 800 l
Water capacity (Incl. calorifer) 900 l

Standard Equipment Deck Fittings

• Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and steps to side decks
• Self-stowing 50kg/110lbs Delta anchor with 60m of chain
• Reversible hydraulic anchor winch with foredeck, helm position and flybridge controls
• Stainless steel cleats, fairleads and handrails
• Twin electric-powered sternline mooring winches
• Freshwater deck/anchor wash
• Foredeck seating and sunbathing area
• Storage lockers for fenders and rope
• LED deck level lighting
• Freshwater deck/anchor wash

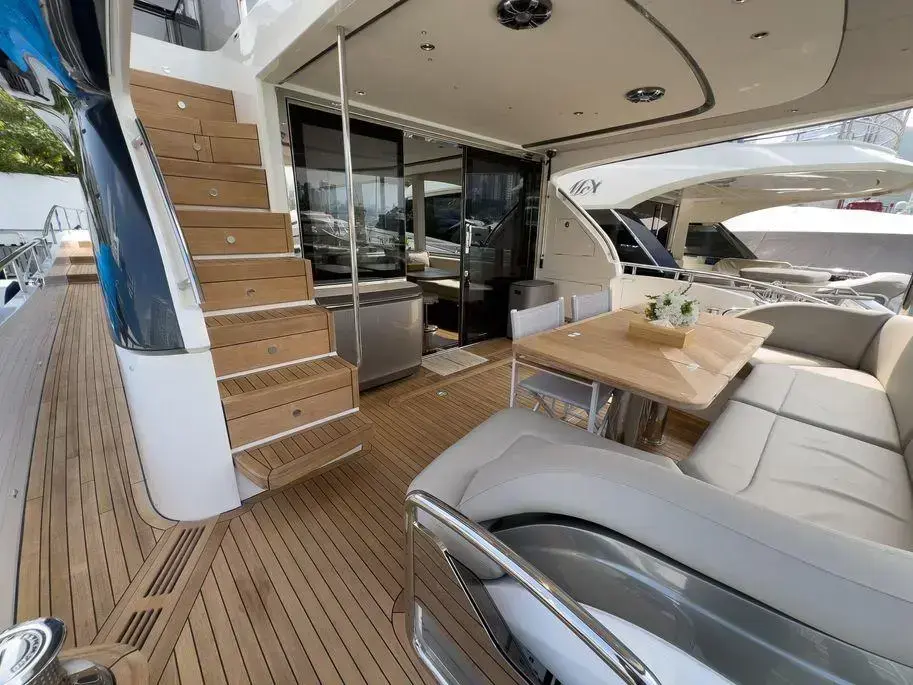

Cockpit

• U-shaped seating with folding teak table
• Twin transom gates leading to bathing platform with electro-hydraulic raise/lower mechanism, foldaway swimming ladder, hot and cold shower
• Transom seat with storage locker
• Lockable gas strut assisted hatch to engine room/lazarette
• Liferaft storage locker
• Locker housing 220/240V shore support inlet
• Cockpit cover

Flybridge

• Dual station instrumentation, controls and alarm system including VHF/RT, speed and distance log, echo sounder with alarm and autopilot
• Large U-shaped seating area with teak table
• L-shaped seat (converts to sunbed)
• Sunpad aft with storage below
• Twin helm seats with fore and aft adjustable helmsman
• Wetbar with barbecue, sink and drawer fridge
• Naim audio system with waterproof speakers
• Console, table and seat covers

Lower Helm Position

• Twin helm seats with fore and aft adjustment for helmsman
• Helmsman’s door to side deck
• Full engine instrumentation including fuel gauges, exhaust temperature and engine warning system rudder position indicator
• Navigation system including colour radar, GPS and chartplotter VHF/RT, speed and distance log, echo sounder with alarm, autopilot and high speed magnetic compass
• Controls for bow thruster, windscreen wipers, bilge pump
• 24v and 240v control panel
• 12v outlet
• Red night lighting

Deck Saloon

• Stainless steel framed sliding doors to aft cockpit with integrated opening window aft of galley
• U-shaped seating area with coffee table
• Two-seater sofa
• Entertainment center incorporating 49” UHD LED TV on electric raise/lower mechanism and audio system with streaming capability Blu-ray player connected to speakers
• L-shaped sofa opposite helm area
• Refrigerator
• Aft dining area

Galley

• 4-zone ceramic hob
• Hob extractor
• Combination microwave/convection oven with grill
• Twin stainless steel sinks with mixer tap
• Full-height refrigerator/freezer
• Icemaker
• Dishwasher
• Storage lockers, cupboards and drawers

Accommodation

• All cabins and bathrooms feature opening portholes and air conditioning outlets
• All cabins feature 220/240v power points
• All mattresses pocket sprung (excluded crew)
• All bathrooms feature full shower stalls, electric freshwater toilets, extractor fan and 240v shaver points
• A combination washer/dryer is fitted in the stateroom lobby

Owner’s Stateroom

• Large double bed with drawers below
• Dressing area with wardrobes and drawer storage
• Dressing table with stool
• Sofa
• Built-in safe
• 49" UHD LED TV and DVD Blu-ray system with Naim audio system
• Storage lockers and drawers
• En suite bathroom
• Dedicated access with lobby area

Forward Guest Cabin

• Large double bed with drawers below
• Wardrobe with shelves
• Vanity unit
• Storage lockers and drawers
• Deck hatch
• En suite bathroom

Starboard Guest Cabin

• Two single beds with drawers below (with option of sliding berths)
• Wardrobe with shelves
• Storage lockers and drawers

Port Guest Cabin

• Two single beds with drawers below (with option of sliding berths)
• Wardrobe with shelves
• Storage lockers and drawers
• En suite bathroom (with day access)

Crew Cabin

• Two single berths with storage below
• Wardrobe with shelf
• En suite bathroom with stall shower

Interior Finish

• Furniture in Rovere Oak or Alba Oak with a satin finish. Walnut or Silver Oak available as an option
• Solid surface worktops and floors in all guest bathrooms
• Galley worktops in choice of granite or quartz
• Choice of high-quality carpet and upholstery fabric from extensive range
• Blinds or sunscreens to all windows and portholes
• Timber-laid galley and helm floors

Power and Drive Systems

• 5-bladed propellers in nickel aluminium bronze
• Princess active ride control
• Bow thruster (250kgf/551lbf)
• Power-assisted electro-hydraulic steering system with hydraulic back-up
• Electronic engine and gear shift controls
• Electronic engine controls
• Dripless shaft seals
• Engine room extractor fan with electronic time delay

Electrical Systems

24 Volt:
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
2 x 60 amp battery charger charges both banks of batteries via an automatic switch charging system
Remote battery master switches with control switch at main panel
LED lighting throughout

220/240 Volt:
22.5kW diesel generator in own sound shield with water cooled specially silenced exhaust
63 amp shore support inlet
Earth leakage safety trip, polarity check system, circuit breakers on all circuits
Power points in all areas

Fuel System

Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 990 gal/
1,189 US gal/4,500l capacity
Fuel fillers on port and starboard side decks
High capacity duplex fuel filters/water traps with audible and visual fuel contamination warning system
Remote fuel isolation controls in cockpit locker

Water System

184 gal/221 US gal/836l plus 16 gal/19 US gal/73l hot water calorifier, heated by engines and 240v
immersion heater
Water level gauge
Deck filler
Electric freshwater WC system with 88 gal/ 106 US gal/400l holding tank

Fire Extinguishers

Automatic/manual override fire extinguishers in engine room with warning system at both helm
positions
Hand-operated fire extinguishers in all cabins, galley and lower helm (6)

Bilge Pumps

Automatic electric bilge pumps (6)
High capacity manual bilge pump with valve system and suction points in same areas

Other Items Supplied as Standard

• Set of cutlery, crockery and glasses (8)
• Set of towels (8 large, 8 small)
• Ensign staff
• Fenders (6) and wraps (4)
• First aid kit, tool kit
• Set of manuals

Descriptions

Stabilisation:
Sleipner Vector Fin stabilisation system with VF800 fins. When underway fins are driven by an engine powered hydraulic motor and at zero speed by a generator powered electric motor. (NB Variable speed thruster(s) are recommended as fin and thruster controls are incorporated into one control at both helms)

Interior Furniture:
Silver oak satin (galley, dinette and helm floors are V groove planked walnut)
V groove planked timber flooring to main deck

Layout:
Starboard, Port cabin to have double berth conversion with powered sliding mechanism on inboard berth

Bar stools (fixed to deck and with top load access to forward saloon port side sideboard unit).

Bathroom Countertops:
Sylmar White satin with thermoformed basins.

Floors:
Carrara White satin.

Deck Hardware:
Up/down electro hydraulic transom platform with 550Kg SWL as standard (maximum recommended tender weight is 450Kg)
GRP radar arch is fitted as standard, finished in white gelcoat with a painted Graphite Grey Metallic styling undercut
GRP flybridge hardtop featuring electric tilting louvres finished in white
Gelcoat with painted Oyster Grey Metallic legs with reduced height aerials mounted on hardtop.
Electrically operated sun awning to aft end of hardtop in Anthracite Grey mesh
Remote control 4.1m telescopic passarelle with folding handrails
Teak laid side decks and fore deck walk through area
Third station controls in cockpit (engine controls, thruster controls and engine emergency stop)
Side boarding gates to aft starboard side decks in addition to passerelle
Stainless steel Ultramarine anchor in place of standard (50Kg)
Additional 20m of 12mm anchor chain to give a total of 80 metres
Teak coffee table (with deck mounted fixing point) for foredeck
Shore water inlet to transom
High pressure deck wash system, located in transom, foredeck and flybridge lockers
Plug in carbon pole transom shower and deck socket to bathing platform
Seabob stowage with charging points in transom storage locker

Generator: ONAN 27kW/50Hz
Additional ONAN 19kW/50Hz

Electrical:
Multi sockets
Underwater transom lights switch independently
Underwater lighting to aft hull sides (4 x THX803 full colour interfaced with radar/chartplotter MFD’s),
Additional single socket in forward cabin, port cabin, starboard cabin, master stateroom, aft/crew cabin & USB charging sockets on Flybridge (wet bar) & Foredeck sun pad, Lava Brick BBQ in place of standard
Sub Zero fridge drawer (71L) fitted in outboard galley counter
Icemaker fitted in flybridge wetbar
Freshwater maker (190L/hr) with remote instrumentation and service/spares kit
Exterior lighting upgrade package.
Included linear LED x1 and fibre optic lighting to the cockpit pelmet and headlining and lowlevel
LED dock lighting x28
Interior lighting upgrade package:
Additional fibre optics to saloon & dining area, LED strip lights to blind pelmets to lower accommodation.
Electric Roman blinds in lieu of Venetian blinds in master stateroom
Electric standard venetian blinds/curtains or optional Roman blinds/Curtains to all main deck windows, excludes patio door & helm area
Replace standard batteries with AGM batteries •Fit sockets and TV outlets in port and starboard cabins for later fitting of TV
fit chain counter at lower and upper helm positions
CCTV cameras, 2x in engine room, 1x pan/tilt camera in cockpit

AUDIO VISUAL & COMMUNICATIONS:
Deck Saloon - 55" UHD LED TV on power lift
Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Blu-ray UHD CD/DVD player. Paired with 2 Focal 100 ICW6 speakers and 1 Focal Cub Evo subwoofer
Owners stateroom - 50" UHD LED TV, Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. UHD Blu-ray CD/DVD player, Paired with 2 Focal 100 ICW6 speakers
Flybridge – Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio M6-650XL (2) waterproof speakers (no HDMI connectivity)
System includes onboard Ethernet network with 4G internet capability access to all areas. This improves connectivity via dedicated app.
Forward Stateroom -
43" UHD LED TV
Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app.
Blu-ray CD/DVD player paired with two Focal 100 ICW6 speakers
Foredeck seating walk-through area -
Naim Uniti Atom audio system with Bluetooth, multi streaming capability and dedicated app. Paired with two Bowers & Wilkins Marine 6 waterproof speakers (no HDMI connectivity)
KVH (TV6) Tracvision in 67 cm dome (linked to all television sets)
Dummy KVH (TV6) dome (49cm dome)
Satellite TV decoder x5

NAVIGATION:
Additional Raymarine Axiom XL16 (15.6") at upper helm
Remote control keypad (RMK-10) at upper helm
Raymarine Magnum HD colour radar, 12kW pedestal with 48" open array scanner
Rest of World version plotter
AIS 700 Class B transponder interfaced with chartplotter & with 8ft (2.4m) aerial.
International VHF

AIR CONDITIONING:
Reverse cycle air conditioning/heating 162,000BTU

EXTERIOR:
Grey exterior covers
Foredeck sun awning in Anthracite with satin black carbon fibre poles, fenders with ropes.
Engine: 178hrs / Gen: 386 & 369hrs
Williams Jet Tender 395
